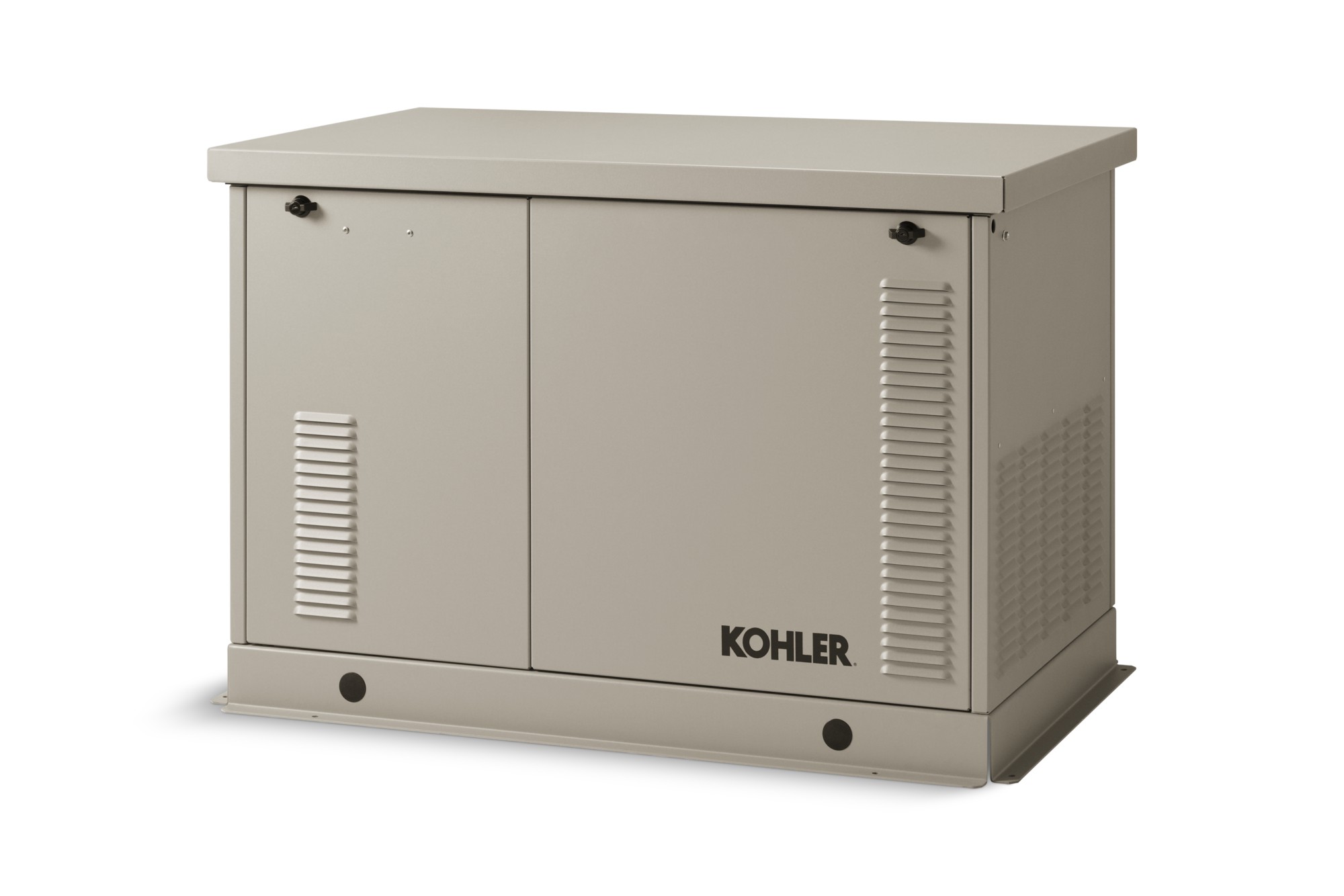

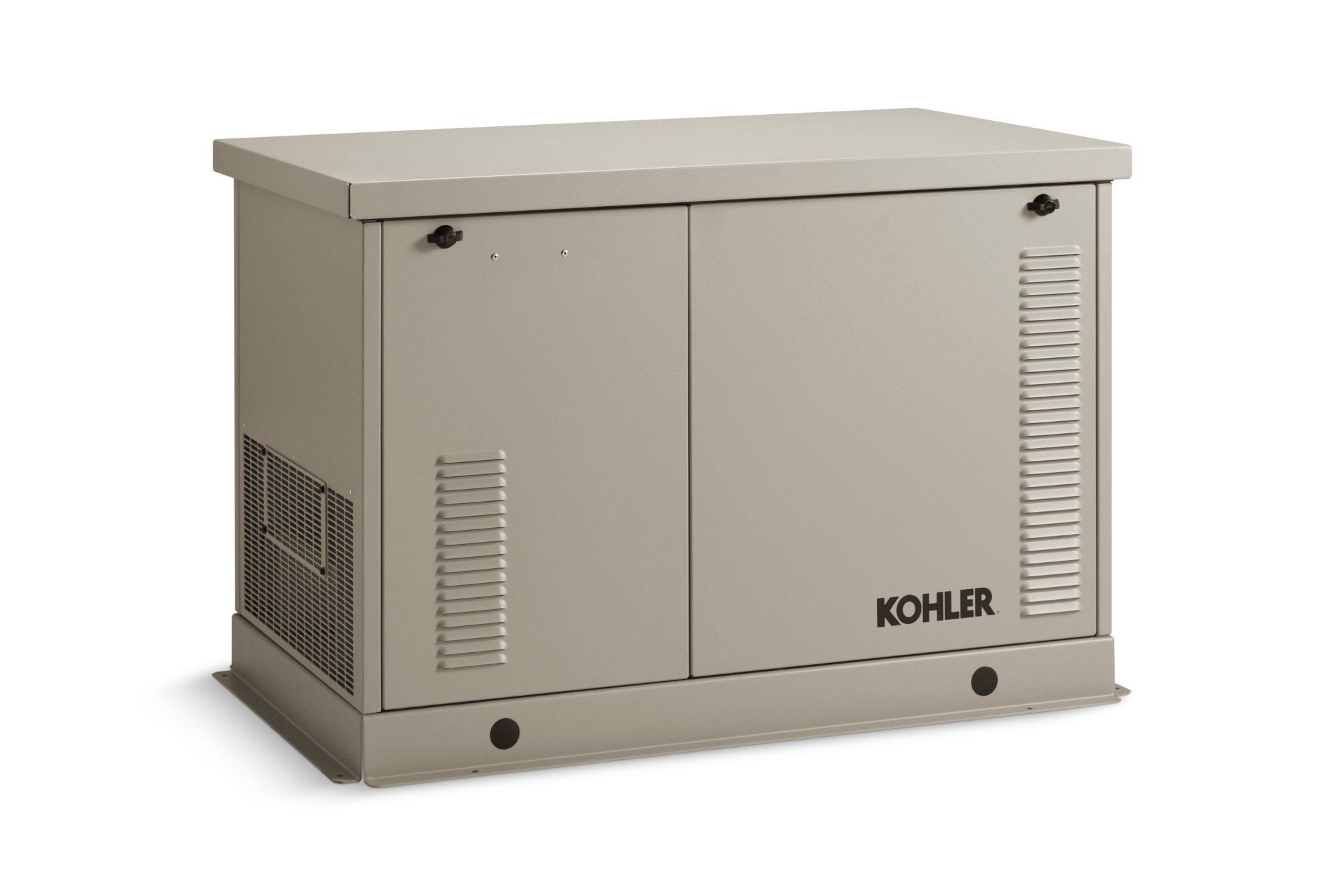

Kohler 12 kW Generator

Contact us for pricing

OVERVIEW
Affordable, commercial-grade power for basic power needs. When a bad storm or utility failure knocks out your power, the 12RES KOHLER® generator keeps your lights on, fridge cold and sump pump working. This generator will power most appliances in smaller homes, or a few critical items in larger homes.*
  • Reliable – Inside the 12RES generator is a commercial-grade engine built to withstand extreme workloads year after year.
  • Off grid – Ideal for off grid applications. Non standby rated KOHLER Command PRO® CH740 paired with ADC-RES controller allows saving battery voltage by going into hibernating mode.
  • Money Saver – No pricey concrete pad needed. Your contractor – and your wallet – will appreciate the built-in mounting pad and easy-to-connect.
  • Premium Warranty – Kohler is known for extraordinary reliability and performance and backs that up with a 5-year or 2000 hour limited warranty that covers parts, labor and travel for the full warranty period.
THE POWER YOU NEED
  • PowerBoost™ technology provides the power to start large loads without dropping power to other appliances
  • Extraordinary peak motor-starting capacity to start and run a typical 4-ton air conditioner while still running other home appliances and electronics
  • Premium power quality delivers exceptional digital voltage and frequency regulation to protect smart appliances and electronics
  • Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; operation speed is 3600 rpm (the standard for air-cooled generators)
  • In just 10 seconds, your KOHLER generator automatically restores power to your heat or AC as well as appliances and electronics.*
THE CONVENIENCES YOU EXPECT
  • ADC-RES Advanced Digital Control designed for today’s sophisticated electronics
  • Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
  • Steel enclosure with automotive-grade paint for advanced corrosion protection
  • Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
  • Streamlined installation, including built-in base that eliminates need for concrete mounting pad and simple terminal block for easy field connections
    REQUEST QUOTE
    GET FINANCING

    Model

    12RES

    Rated kW LP

    12 kW

    Rated kW NG

    10.4 kW

    Amps LP

    50 amps

    Amps NG

    43 amps

    Peak Motor Starting kVA @240 V

    32 kVa

    Displacement

    0.725 L (44 cu. in.)

    Horsepower

    NG 20.5 HP, LP 23.6 HP

    Enclosure Material

    Steel

    Sound Output During Weekly Exercise

    65 dB(A)

    Sound output During Full-speed Operation

    65 dB(A)

    Response Time

    10 seconds

    Certifications/Listings

    EPACARBUL 2200

    Automatic Transfer Switch Included

    Included

    Off Grid / Utility backup

    Off GridUtility Backup

    Weight

    400 lbs. (182 kg)

    Alternator Type

    2-Pole, Rotating Field

    Fuel Consumption on NG at 50% Load?

    124 cfh

    Fuel Consumption on LP at 50% Load?

    60 cfh

    Controller

    ADC-RES Controller

    Cylinder Arrangement

    V-2

    Dimensions

    1123 mm x 726 mm x 804 mm (44.2 in. x 28.6 in. x 31.6 in.)

    Engine Manufacturer/Description

    KOHLER

    Engine Model

    CH740

    Engin/Alternator RPM

    3600

    Fuel Type

    Natural Gas | LPG

    Frequency

    50 Hz | 60 Hz

    Phase

    Single Phase

    Voltage @60 Hzs

    120/240

    Digital Voltage Regulation

    ±1.5%

    Built in Mounting pad

    Yes
