Contact us for pricing

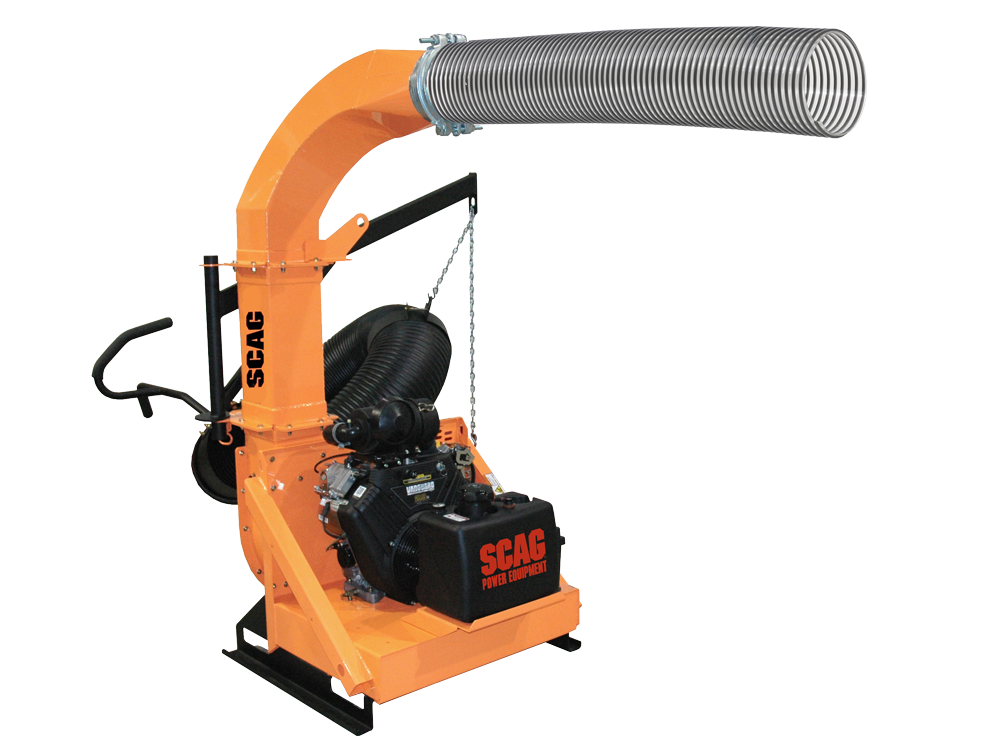

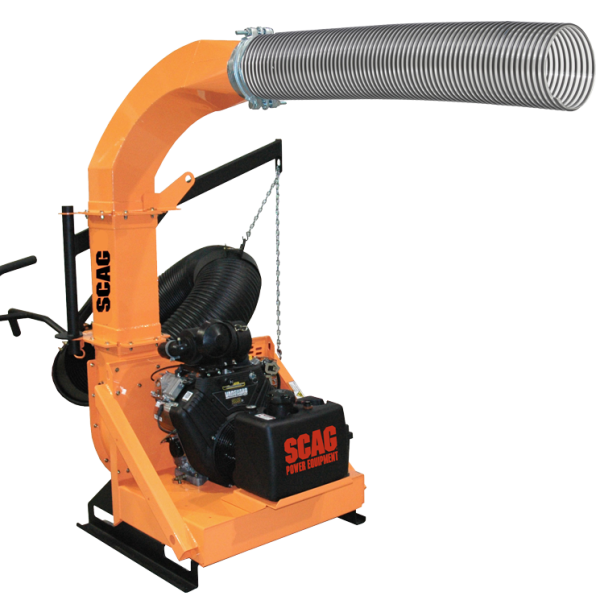

Dynamically balanced for reduced vibration, longer life and less stress on the engine, Scag® Industrial Skid-Mount Truck Loaders boast an effective design.
| Product Specification | Industrial Skid-Mount | |
|---|---|---|
| Model | TLS20W-29BV | TLS20W-33BV |
| Engine | Briggs & Stratton® Vanguard® BIG BLOCK™, V-Twin, electric start | Briggs & Stratton® Vanguard® BIG BLOCK™, V-Twin, electric start |
| HP* | 29 | 33 |
| Fuel Capacity / Tank | 5.5 gallons – plastic tank with built-in fuel gauge | 5.5 gallons – plastic tank with built-in fuel gauge |
| CFM Output | 4,680 | 4,680 |
| Frame Construction | All-steel, welded | All-steel, welded |
| Impeller Construction | 4-blade, 3/8″-thick blades, all-steel, welded | 4-blade, 3/8″-thick blades, all-steel, welded |
| Impeller Mounting | Tapered locking hub | Tapered locking hub |
| Impeller Diameter / Width | 20″ / 6.5″ | 20″ / 6.5″ |
| Blower Housing Construction | Removable back panel for easy impeller and wear plate access | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 7.5″ | 7.5″ |
| Blower Housing Wear Plates | Standard: 1/4″-steel, replaceable | Standard: 1/4″-steel, replaceable |
| Hose Specifications | 120″ length, 12″-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip | 120″ length, 12″-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip |
| Unit Mounting | 4″ steel skid risers | 4″ steel skid risers |
| Discharge Tube | Clear thermoplastic, 8″ diameter | Clear thermoplastic, 8″ diameter |
| Throttle Control | Commercial-grade, all-steel mechanicals, plastic debris cover | Commercial-grade, all-steel mechanicals, plastic debris cover |
| Highway Ready | n/a | n/a |
| Axle | n/a | n/a |
| Tires | n/a | n/a |
| Trailer Width | n/a | n/a |
| Height | 75″ (without skid mount attached) | 75″ (without skid mount attached) |
| Weight | 675 lb | 675 lb |
| Warranty | 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental | 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental |
| MSRP | $8,199 | $8,299 |
| * Engine power levels as rated by the manufacturer. Specifications and prices subject to change without notice. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation. All models subject to availability. Contact your local Scag dealer for specific availability information. |
||
