Contact us for pricing

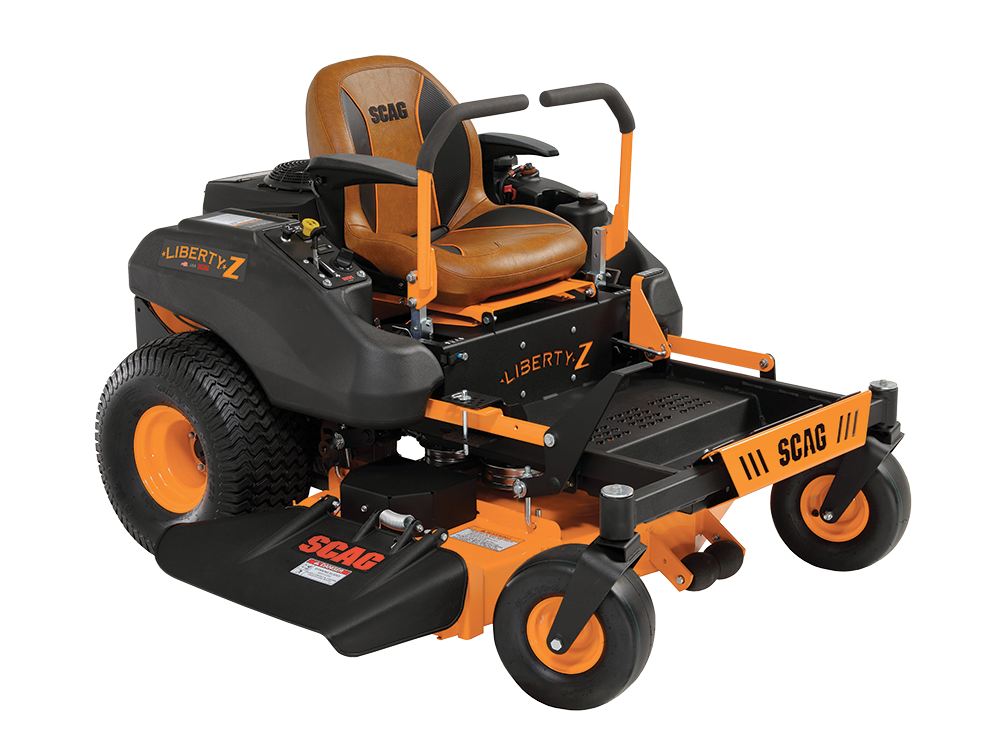

The Scag® Liberty® Z zero-turn riding lawn mowers with heavy-duty design, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance.
| Model | Deck Width | Engine | Horsepower | MSRP |
|---|---|---|---|---|
| SZL-36H-18FR | 36″ | Kawasaki® FR Series | 18 | $5,999 |
| SZL-36H-20KT | 36″ | Kohler® 7000 Series | 20 | $5,599 |
| SZL-36H-20PX | 36″ | Briggs & Stratton® PXi Series™ | 20 | $5,699 |
| SZL-42H-21FR | 42″ | Kawasaki® FR Series | 21 | $6,299 |
| SZL-42H-22PX | 42″ | Briggs & Stratton® PXi Series™ | 22 | $5,999 |
| SZL-42H-22KT | 42″ | Kohler® 7000 Series | 22 | $6,099 |
SZL-48H-21FR  |
48″ | Kawasaki® FR Series | 21 | $6,349 |
| SZL-48H-22KT | 48″ | Kohler® 7000 Series | 22 | $6,099 |
| SZL-48H-22PX |
48″ | Briggs & Stratton® PXi Series™ | 22 | $6,099 |
| SZL-48H-24SR | 48″ | Scag SR Series | 24 | $5,999 |
| SZL-52H-23FR |
52″ | Kawasaki® FR Series | 23 | $6,749 |
| SZL-52H-24SR | 52″ | Scag SR Series | 24 | $6,199 |
| SZL-52H-24KT | 52″ | Kohler® 7000 Series | 24 | $6,499 |
| SZL-52H-24PX | 52″ | Briggs & Stratton® PXi Series™ | 24 | $7,399 |
| SZL-61H-24FR |
61″ | Kawasaki® FR Series | 24 | $7,249 |
| SZL-61H-26KT | 61″ | Kohler® 7000 Series | 26 | $6,899 |
| SZL-61H-27SR | 61″ | Scag SR Series | 27 | $6,999 |
| Contact your local Scag dealer for specific availability information. | ||||
| Product Dimensions | 36″ Liberty Z | 42″ Liberty Z | 48″ Liberty Z | 52″ Liberty Z | 61″ Liberty Z |
|---|---|---|---|---|---|
| Length | 68.5″ | 68.5″ | 67.5″ | 67.5″ | 73.5″ |
| Width (chute down) | 48.5″ | 54.5″ | 60.5″ | 64.5″ | 73.5″ |
| Width (chute in transport position) | 37″ | 43″ | 49″ | 53″ | 62″ |
| Height | 40″ | 41″ | 41″ | 41″ | 41″ |
| Weight | 555 lb | 595 lb | 612 lb | 646 lb | 695 lb |
| General | |
|---|---|
| Total Fuel Capacity | 3.5 gallons (36″ and 42″)
5.5 gallons (48″, 52″ and 61″) |
| Drive Tires | 20″ x 8″-10″ (36″)
20″ x 10″-8″ (42″, 48″ and 52″) 20″ x 10″-10″ (61″) |
| Caster Tires | 11″ x 4″-5″ (36″ and 42″)
11″ x 6″-5″ (48″, 52″ and 61″) |
| Seat | Padded with arm rests, adjustment forward and back (tools required)
(no armrests on 36″ and 42″ models) |
| Drive System | |
| Drive System Type | 36″ and 42″ models: Hydro-Gear ZT-2800 Transaxle
48″ and 52″ models: Tuff Torq TZ450 Transaxle 61″ models: Hydro-Gear ZT3100 Transaxle |
| Pumps | Internal Pump: 10 cc |
| Motors | Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear) |
| Forward Ground Speed | 7 mph |
| Reverse Ground Speed | 5 mph |
| Parking Brake | Hand lever |
| Deck | |
| Cutting Widths | 36″, 42″, 48″, 52″ and 61″ |
| Cutting Height | 1.5″ to 4.5″ in .25″ increments |
| Spindles | Aluminum housing with sealed ball bearings. |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Deck Lift | Foot-operated pedal |
| Type | Heavy-Duty Hero Cutter Deck |
| Blade Engagement | Ogura GT1 (74 ft lb) – (36″, 42″, 48″ and 52″)
Ogura GT2 (108 ft lb) – (61″) Adjustable air-gap for extended life. |
