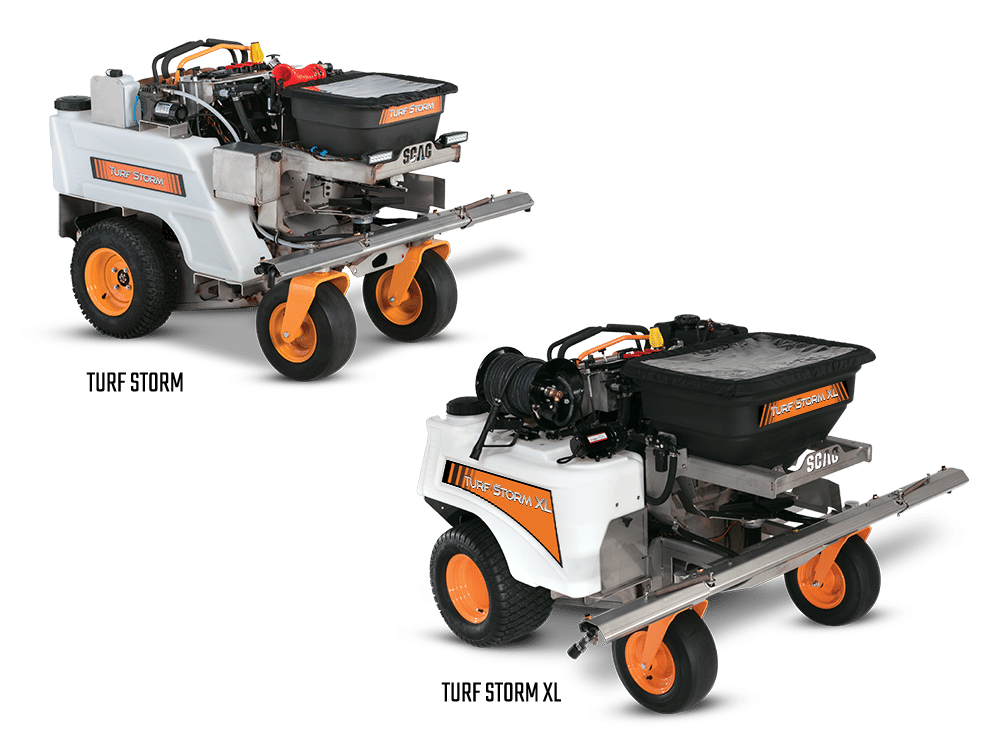

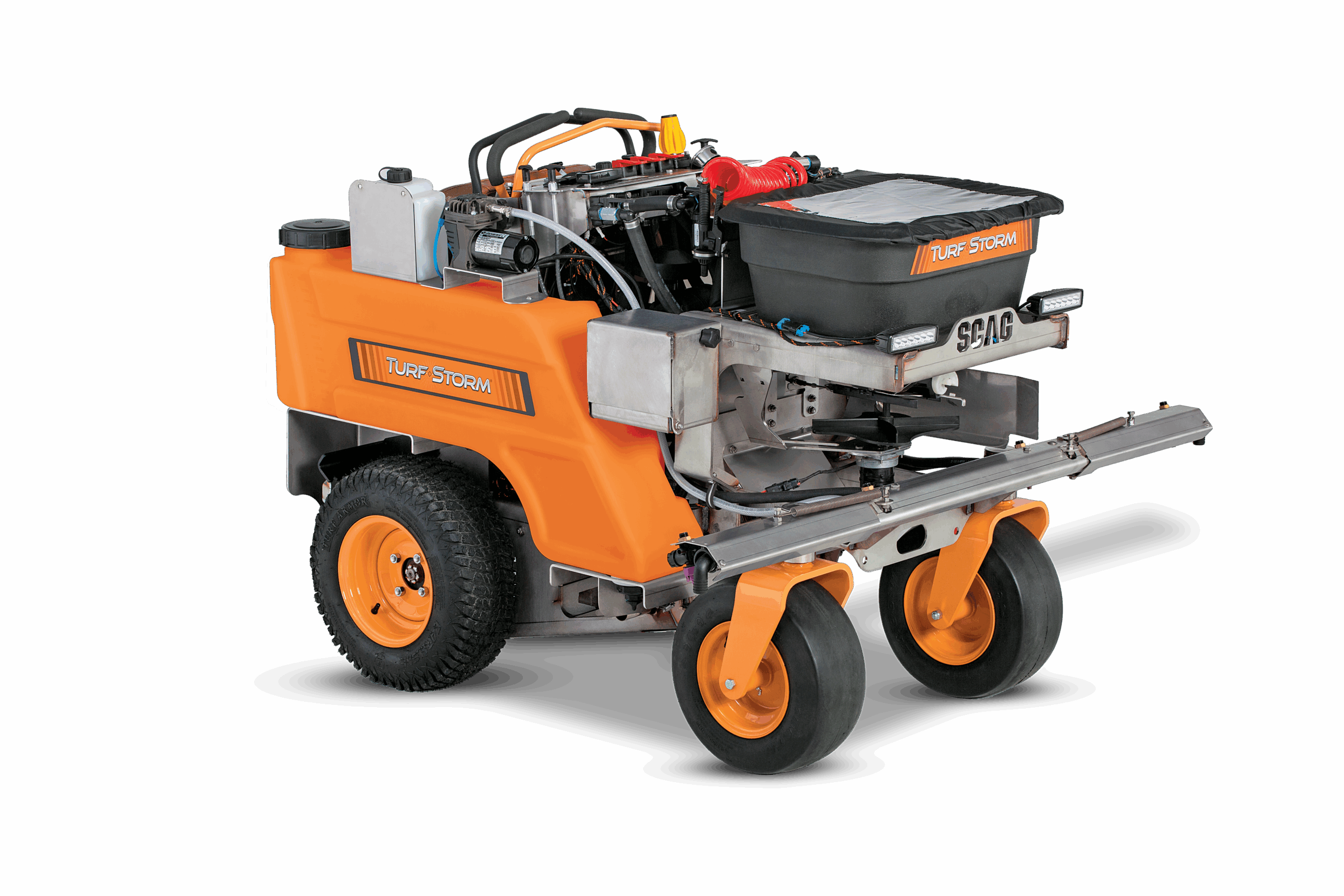

Scag Turf Storm XL & Turf Storm

Scag® Turf Storm Stand-On Spreader / Sprayer with heavy-duty construction, 220# hopper capacity, & 60 gal. liquid capacity.

Product Specification	Turf Storm XL	Turf Storm
Hopper Capacity	60-Gallon Capacity, 220-lb Hopper	30-Gallon Capacity, 120-lb Hopper
Spreader Motor	High-Torque Electric	High-Torque Electric
Spread Width	Up to 25 ft.	Up to 25 ft.
Deflector	Mechanical Lever Activation of Stainless Steel Door	Mechanical Lever Activation of Stainless Steel Door
Hopper Cover	Included	Included
* Dimensions are approximate Pre-production unit shown in photos. Actual product may vary. Specifications subject to change. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation. Contact your local Scag dealer for specific availability information.

Product Specification	Turf Storm XL	Turf Storm
Spray Capacity	60-gallon; Dual 30-gallon tanks. High visibility tanks.	30-gallon; Dual 15-gallon tanks. High visibility tanks.
Hinged Boom Arms	8-foot wide, 5 nozzles	65-inch wide, 4 nozzles
Spray Width	2, 6, 8 or 10 ft	2, 6 or 8 ft
Breakaway Booms	Standard	Standard
Coil Hose	Heavy duty, 75-foot high-pressure hose	15-foot flex hose
Pump Capacity	5 gpm; 7 gpm optional accessory	5 gpm; 7 gpm optional accessory
* Dimensions are approximate Pre-production unit shown in photos. Actual product may vary. Specifications subject to change. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation. Contact your local Scag dealer for specific availability information.

GENERAL	Turf Storm XL	Turf Storm
Model	STS60XL-23BV	STS30-23BV
Total Fuel Capacity	5 gallons	4.5 gallons
Front Wheel(s)	16″ x 6.5″-8″, pneumatic	16″ x 6.5″-8″, pneumatic
Rear Wheels	20″ x 12″-10″, 4-ply	20″ x 7″-10″, 4-ply
Currently Available Accessories	Foamer Kit, LED Light Kit and 7 GPM pump	Foamer Kit, LED Light Kit and 7 GPM pump
ENGINE
Engine	Briggs Vanguard™	Briggs Vanguard™
Horsepower	23 hp	23 hp
Charging System	12 Volt, 50 Amp	12 Volt, 50 Amp
DRIVE SYSTEM
Drive System	Dual Pump and Motor	Dual Pump and Motor
Pumps	Hydro-Gear: PG Series 10 cc	Hydro-Gear: PG Series 10 cc
Motors	Parker TG Series: 14.5ci	Parker TG Series: 14.5ci
Ground Speed	Up to 8.5 MPH forward Up to 5 MPH reverse	Up to 8.5 MPH forward Up to 5 MPH reverse
Parking Brake	Hand Lever	Hand Lever
DIMENSIONS
Length	67″	65″
Width (spray booms in)	54″	35.5″
Width (spray booms out)	82″	65″
Height	50″	50″
Weight (dry)	965 lb	859 lb
Warranty	2-Year Commercial & Non-Commercial Warranty; 90-day Rental	2-Year Commercial & Non-Commercial Warranty; 90-day Rental
PRICING
MSRP	$19,999	$18,499
Pre-production unit shown in photos. Actual product may vary. Specifications subject to change. Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.
